Calibration slide 2

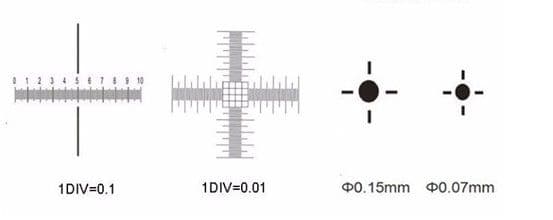

The combination micrometer is divided into 4 parts. The total length of the first scale is 1mm, divided into 100 equal parts, each with a cross shape of 0,01mm division value. There is a circle with a diameter of 3mm and a line thickness of 0,1mm outside the scale line, which is used to find the line during focusing. The length of the second scale is 10mm, divided into 100 equal parts, each with a cross coordinate of 0,1mm for easy calibration at low magnifications. Third and fourth features are circular shapes with diameters of 0,15mm and 0,07mm repectively, with cross lines on the top, bottom, left, and right sides for easy focusing and localization.

Mainly used in conjunction with electronic eyepieces, microscope cameras, and imaging software to measure microscopic objects.

Error tolerance: 0,5µm

Slides size: 75x25x1mm

Individual packaging size: 10x5x2cm

Individual packaging weight: 20g/piece
