Calibration slide 1

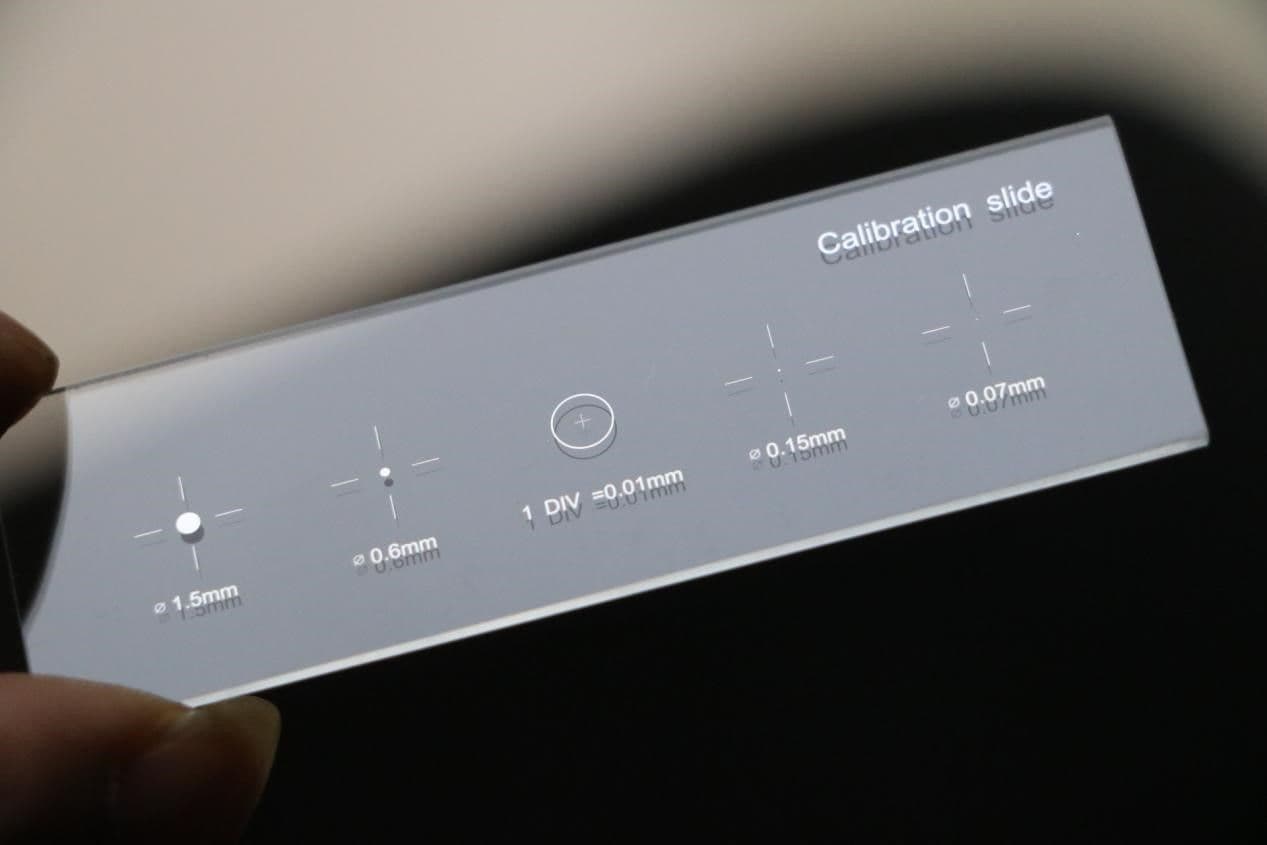

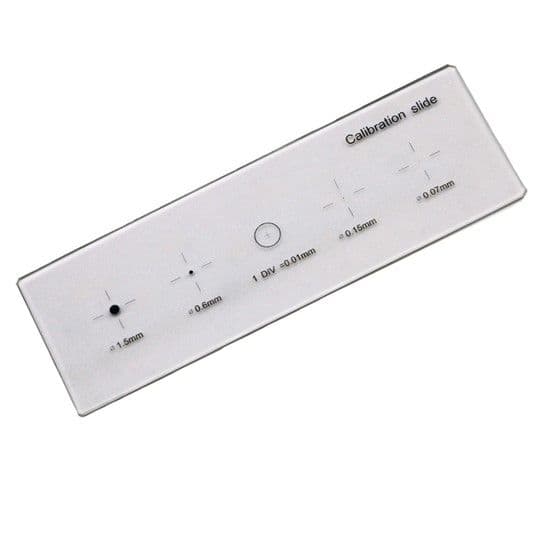

The combination micrometer is divided into 5 parts: 4 points with dimensions of 1,5mm, 0,6mm, 0,15mm, and 0,07mm, and a cross shaped scale in the middle os a circle with a diameter of 3mm, with a total length of 1mm for both the X and Z axes, divided into 100 equal parts, and each division value is a 0,01mm cross shape. The circle with the diameter of 3mm has a line thickness of 0,1mm.

Mainly used in conjunction with electronic eyepieces, microscope cameras, and imaging software to measure microscopic objects.

Error tolerance: 0,5µm

Slides size: 75x25x1mm

Individual packaging size: 10x5x2cm

Individual packaging weight: 20g/piece
